Seal Proof

Cartridge Double Acting

Back-to-back double cartridge seal on pressurised barrier fluid, for chemicals and their vapours.

Request a quoteDatasheetTalk to an engineer
Seal characteristics
Double acting back-to-back seals · Balanced · Cartridge unit · Independent of direction of rotation · Operated with pressurised barrier fluid
Pressure p
Vacuum …. 35 bar (max)
Temperature t
Ambient to +200°C (max)

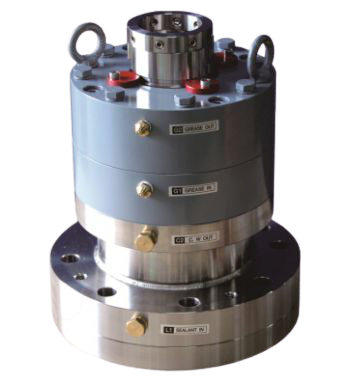

Seal Proof double-acting cartridge seal — back-to-back seal pair in one cartridge with barrier fluid ports.

Overview

A balanced, back-to-back double-acting cartridge unit operated with a pressurised barrier fluid, independent of direction of rotation.

Used on petrochemicals, general chemicals and light hydrocarbons and their vapours. The inboard secondary seal is PTFE or GFT; the outboard secondary seal is elastomer.

Specifications

Seal characteristics
Double acting back-to-back seals · Balanced · Cartridge unit · Independent of direction of rotation · Operated with pressurised barrier fluid
Pressure p
Vacuum …. 35 bar (max)
Temperature t
Ambient to +200°C (max) provisionalPublished as "Amb. … 2000c (max)". The trailing 0 before c is the lost degree symbol. 2000 °C is not a possible reading: the inboard secondary seal is PTFE or GFT, which decompose near 260 °C. Provisional pending confirmation by Seal Proof Engineering.
Shaft speed n
600 rpm. (max)
Barrier fluid pressure
Vessel pressure + 1.5 bar

Note: Shaft diameter remains withheld. It was published as "25 …..150mm*" and the asterisk has no footnote anywhere on the legacy page, so the qualification it carried is lost. It awaits engineering sign-off before publication.

Contact our engineering team for application-specific specifications.

Materials of construction

  • Face materials: Carbon, Ceramic, Silicon Carbide, Tungsten Carbide, Lecrolloy
  • Metal parts: SS 316, SS 304, Carbon Steel, Hastelloy-B, Hastelloy-C, Monel, Alloy – 20
  • Secondary seal: Inboard – PTFE, GFT; Outboard – Elastomers

Applications

  • Petrochemicals and its vapours
  • General chemicals and its vapours
  • Light hydrocarbons and its vapours
