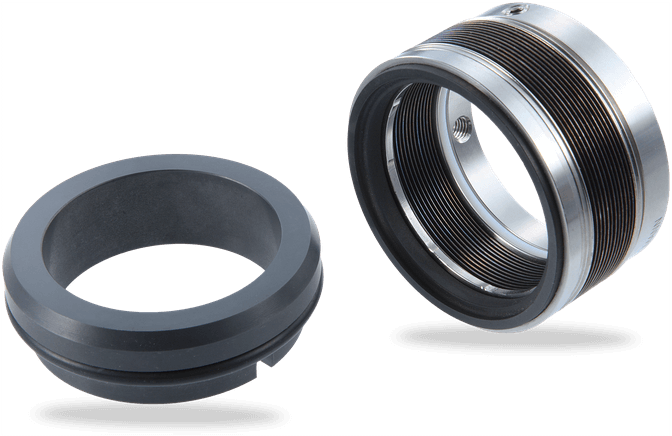

Metal Bellow Mechanical
Springless metal bellows seal for high-temperature, hydrocarbon and critical services.
- 25 bar
- -40°C to 350°C
- 20 m/s
Overview
A metal bellows seal for high-temperature, hydrocarbon and critical service duties, rated to 25 bar and -40°C to 350°C.
Faces are supplied in carbon, silicon carbide or tungsten carbide, with graphite, Perflouro or FEP secondary seals and SS-316, AM-350, Hastelloy-C or Alloy-20 hardware.
Specifications
- 25 bar
- -40°C to 350°C
- 20 m/s
- 25 mm to 100 mm
Materials of construction
- Faces: Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Graphite, Perflouro, FEP
- Hardware: SS-316, AM-350, Hastelloy-C, Alloy-20
Applications
- High Temperature, Hydrocarbons & Critical Services
Related products
Tell us the duty.
Media, temperature, pressure, shaft size and speed are usually enough for our engineers to specify metal bellow mechanical for your equipment.
