Seal Proof

Boiler Feed Self Priming Pump

Self-priming high-head pump to 250 m and 26 bar for boiler feeding and condensate recovery.

Request a quoteDatasheetTalk to an engineer
Capacity Q
Up To 20 M3/Hr.
TDH H
Up To 250 Mtr.
Pump sizes
DN 15 mm To 50 mm

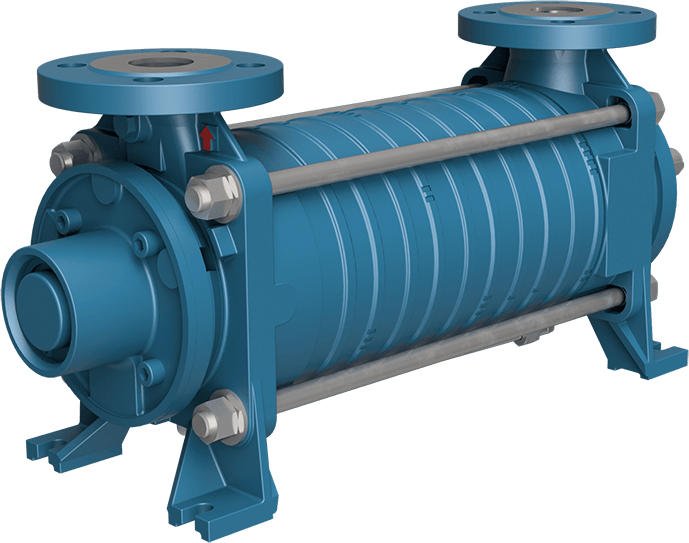

Seal Proof boiler feed self priming pump — high-head self-priming pump on a coupled base frame.

Overview

A self-priming pump for boiler feeding, power plant and cooling tower service, oil circulation, high pressure testing and high head delivery condensate recovery.

Delivers up to 20 m³/hr against up to 250 metres head at 26 bar, in cast iron, SS-316, SS-304 or bronze.

Specifications

Capacity Q
Up To 20 M3/Hr.
TDH H
Up To 250 Mtr.
Pump sizes
DN 15 mm To 50 mm
Speed N
1450 rpm at 50Hz and 1750 rpm at 60 Hz
Temperature
90 C
Pressure
26 bar.
Optional accessories
M.S. fabricated base frame · Flexible coupling · Coupling guard · Foundation bolt

Contact our engineering team for application-specific specifications.

Materials of construction

  • Cast Iron
  • SS-316
  • SS-304
  • Bronze

Applications

  • Boiler feeding
  • Power plant, cooling towers
  • Edible castor oil, circulation of lubrication oils
  • High pressure testing
  • High head delivery condensate recovery

Related products

Next step

Tell us the duty.

Media, temperature, pressure, shaft size and speed are usually enough for our engineers to specify boiler feed self priming pump for your equipment.
