Centrifugal Pumps

Horizontal single-stage end-suction pump to 1100 m³/hr, to DIN 24256 / ISO 2858 and API 610.

Request a quoteDatasheetTalk to an engineer
Configuration
Horizontal · Foot mounted · Single stage · End suction and top centreline discharge
Standards referenced
DIN 24256 / ISO 2858, and in general API 610 as well
Capacity Q
Up To 1100 M3/Hr.

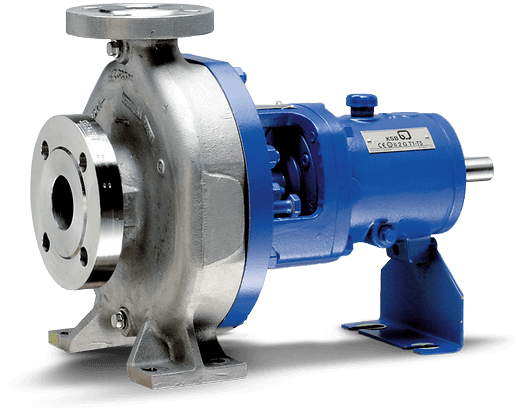

Seal Proof centrifugal pump — horizontal foot-mounted single-stage end-suction pump.

Overview

A horizontal, foot-mounted, single-stage pump with end suction and top centreline discharge, conforming to DIN 24256 / ISO 2858 standards and in general to API 610 as well.

The widest-duty pump in the range, covering up to 1100 m³/hr and 150 metres head across sizes from DN 25 mm to 300 mm, in materials from graded grey cast iron through duplex grades, Alloy 20 and Hastelloy.

Specifications

Configuration
Horizontal · Foot mounted · Single stage · End suction and top centreline discharge
Standards referenced
DIN 24256 / ISO 2858, and in general API 610 as well
Capacity Q
Up To 1100 M3/Hr.
TDH H
Up To 150 Mtr.
Pump sizes
DN 25 mm to 300 mm.
Speed N
960/1450/2900rpm at 50 Hz and 1150/1750/3500 rpm at 60Hz
Temperature
350 C

Note: Two published material designations are withheld: "R55" and "2-1nicl". Neither maps to a recognisable standard grade — "2-1nicl" may be a mangling of a Ni-Cr-Mo steel designation — and neither has been guessed at. Both await engineering sign-off before publication.

Contact our engineering team for application-specific specifications.

Materials of construction

  • Graded Grey Cast Iron
  • Alloy Steel
  • CF8M
  • CF3M(SS-316l)
  • CD4MCU
  • Ni-Resist
  • Gun Metal/Bronze
  • Carbon Steel (WCB)
  • CF8
  • CF3
  • Alloy 20
  • Nickel and Ni-Alloys
  • Hastelloy-B/C

Applications

  • Chemical process industries
  • Fertilizer plants
  • Bulk drugs and pharmaceutical
  • Heating and air conditioning plants
  • Sugar plant
  • Water supply
  • Pulp and paper, textile
  • Cement, agriculture
  • Jet dyeing
  • Hot water etc

Related products

Next step

Tell us the duty.

Media, temperature, pressure, shaft size and speed are usually enough for our engineers to specify centrifugal pumps for your equipment.
