Chemical Pumps

Non-clogging chemical duty pump to 80 m³/hr and 62 m, with micrometric wear adjustment.

Request a quote Datasheet Talk to an engineer

Features: Non-clogging tendency · Handles light slurries without problems · Grease/oil lubricated bearing · Dynamically balanced impeller · Less noise · No vibration · Centre delivery · No air locking
Capacity Q: Up To 80 M3/Hr.
TDH H: Up To 62 Mtr.

Overview

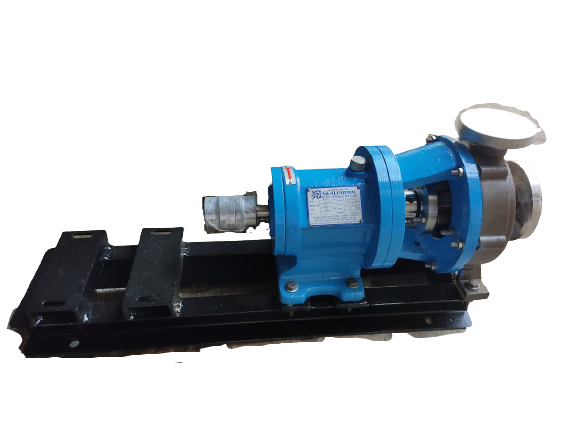

A chemical process pump with a non-clogging tendency that handles light slurries without problems, running on grease or oil lubricated bearings with a dynamically balanced impeller.

Centre delivery avoids air locking, and the pump runs with less noise and no vibration. Casings and wetted parts are offered across cast iron, stainless, bronze and carbon steel grades to suit the medium.

Specifications

Features: Non-clogging tendency · Handles light slurries without problems · Grease/oil lubricated bearing · Dynamically balanced impeller · Less noise · No vibration · Centre delivery · No air locking
Capacity Q: Up To 80 M3/Hr.
TDH H: Up To 62 Mtr.
Pump sizes: DN 25 mm To 50 mm
Speed N: 1440/2880 rpm at 50 Hz and 1750/3500 rpm at 60 Hz
Temperature: 110 C

Note: One feature bullet is withheld. The legacy page split a single sentence across two broken bullets — "Micrometric wear adjustable facility hence" / "Worries at constant head for longer period" — leaving the claim incomplete. It awaits engineering sign-off before publication.

Contact our engineering team for application-specific specifications.

Materials of construction

Cast Iron
SS-304
SS-316
SS-316L(cf3m)
Bronze
Carbon Steel (WCB)
SS304L (CF3)

Applications

Organic/inorganic chemical
Steel industries
Fertilizers
Ceramics
Dyes
Kerosene
Pulp and paper, textile
Food industries etc…

Related products

Next step

Tell us the duty.

Media, temperature, pressure, shaft size and speed are usually enough for our engineers to specify chemical pumps for your equipment.
