Seal Proof

Polypropylene Pumps

PP, PVDF or UHMWP non-metallic pump to 100 m³/hr for effluent, water treatment and pharma plants.

Request a quoteDatasheetTalk to an engineer
Capacity Q
Up To 100 M3/Hr.
TDH H
Up To 55 Mtr.
Pump sizes
DN 25 mm To 100 mm

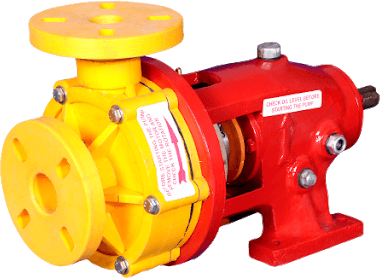

Seal Proof polypropylene pump — moulded non-metallic pump casing on a coupled baseplate.

Overview

A non-metallic pump built in polypropylene, PVDF or UHMWP for aggressive water and effluent duties, delivering up to 100 m³/hr against up to 55 metres head.

Optional accessories include an M.S. fabricated base frame, flexible coupling, coupling guard and foundation bolts.

Specifications

Capacity Q
Up To 100 M3/Hr.
TDH H
Up To 55 Mtr.
Pump sizes
DN 25 mm To 100 mm
Speed N
1440/2880 rpm at 50 Hz and 1750/3500 rpm at 60 Hz
Temperature
80 C – 140C
Optional accessories
M.S. fabricated base frame · Flexible coupling · Coupling guard · Foundation bolt

Note: One application line is withheld. The legacy page listed a bare bullet reading only "Plants" — a truncated line item whose intended text is lost. It awaits engineering sign-off before publication.

Contact our engineering team for application-specific specifications.

Materials of construction

  • PP/PVDF/UHMWP

Applications

  • Effluent treatment
  • Water treatment plants
  • Drugs and pharmaceuticals
  • Fertilizer plants
  • Thermal and atomic power plants
  • Pharmaceutical industry etc…
