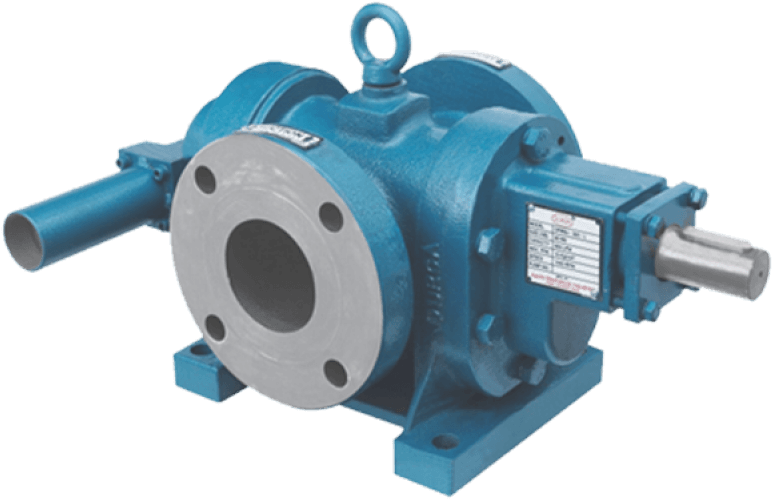

Rotary Gear Pumps

Positive displacement gear pump to 125 m³/hr for viscous oils, bitumen, syrups and resins.

Request a quote Datasheet Talk to an engineer

Capacity Q: Up To 125 M3/Hr.
Viscosity: 100000 CST
Speed N: Max. speed 1440 rpm; reduction as a function of viscosity

Overview

A rotary gear pump for highly viscous or semi-viscous liquids — L.D.O. and F.O., hot grease and tallow, bitumen, thermic fluid, syrups, liquors, glycerine, resins and pigments, tar and paper pulp.

Handles viscosity up to 100000 CST at temperatures to 110 C, with maximum speed reduced as a function of viscosity. Optional accessories include an M.S. fabricated base frame, flexible coupling, coupling guard and foundation bolts.

Specifications

Capacity Q: Up To 125 M3/Hr.
Viscosity: 100000 CST
Speed N: Max. speed 1440 rpm; reduction as a function of viscosity
Temperature: 110 C
Optional accessories: M.S. fabricated base frame · Flexible coupling · Coupling guard · Foundation bolt

Note: Two figures are withheld. Pump sizes were published as "DN 2 mm To 150 mm" — DN 2 mm is implausibly small and is most likely a typo, but the intended value is unknown. Total dynamic head was published as "Up To 17 Kg/Cm2.", stated in pressure units where every other pump in the range uses metres. Both await engineering sign-off before publication.

Contact our engineering team for application-specific specifications.

Materials of construction

Cast Iron
Gun Metal
SS-316
Cast Steel (WCB)
SS-304
Alloy-20

Applications

L.D.O.
Hot grease and tallow
F.O.
Syrups
Glue plant
Thermic fluid
Liquors
Milk
Bitumen
Resins and pigments
Highly viscous or semi viscous liquids
Soap spray mixture
Soft drinks
Tar
Glycerine
Food industries
Kerosene
Dyes
Paper pulp
Chemical plants etc…
